Viewport Camera#

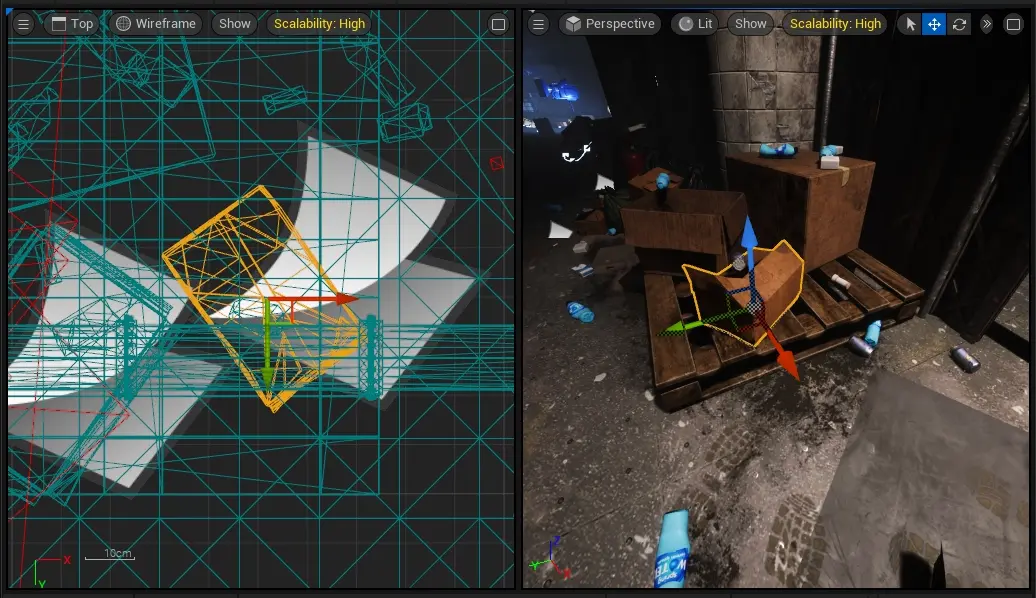

Viewport Camera Types#

../../_images/333.webp

  • Perspective - the default view

  • Orthographic - useful for precise actor placement

Keyboard shortcut
Keyboard shortcut [ALT] + [G] or [H] or [J] or [K] -> Perspective, Front, Top, Left
[ALT] + [SHIFT] + ... reverses the orthographic view, eg. Left -> Right

Viewport Camera Options#

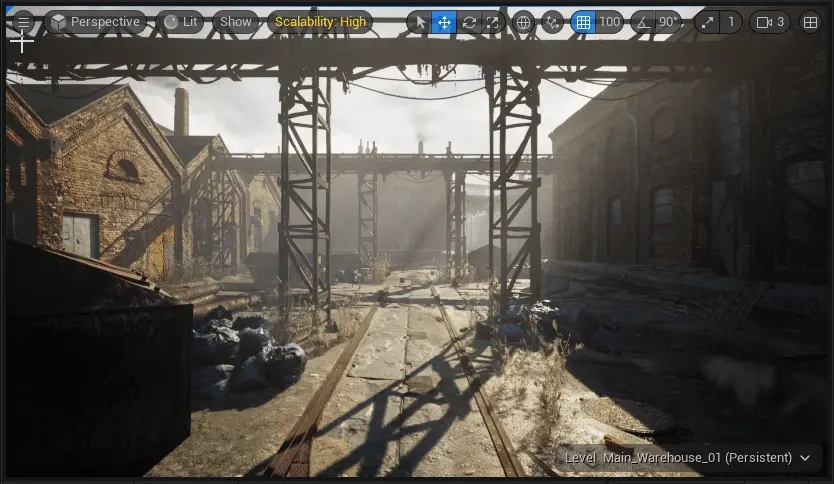

Viewport Camera Field of View (FOV)#

../../_images/038.webp
Unreal Engine uses Horizontal FOV, hence (H) in title.
Default value is 90°

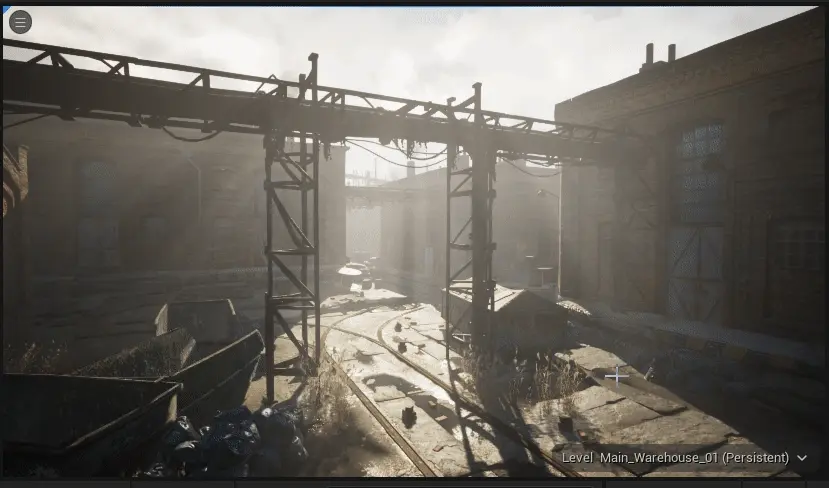

Viewport Camera Far View Plane#

../../_images/057.webp

Far View Plane defines how far does the object need to be from camera to not be rendered.

Useful for large worlds to improve performance.

Setting value to 0 sets it to Infinite

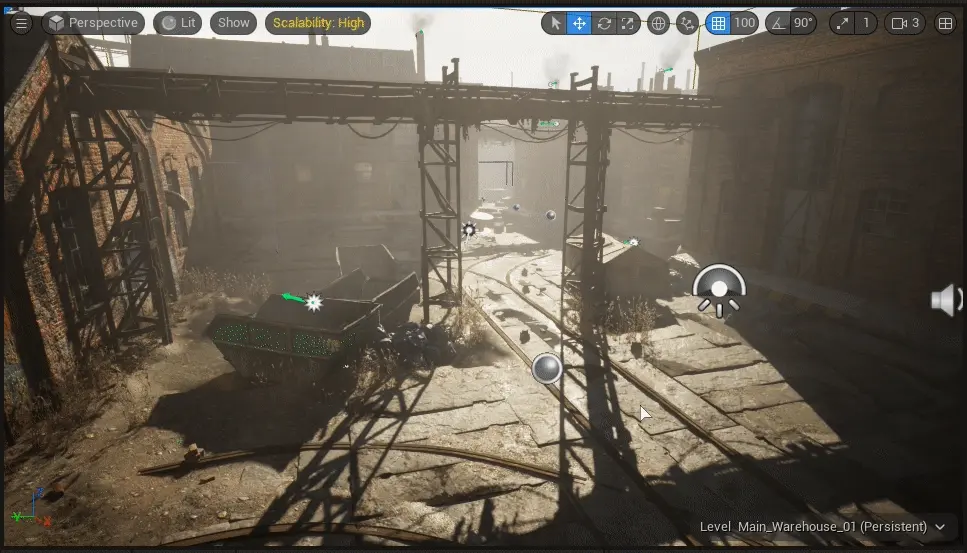

Viewport Camera Bookmarks#

../../_images/066.webp

Bookmarks save viewport camera location

Bookmarks are saved into current level.
Bookmarks are moving the camera in ALL viewport windows.
Go to bookmark: Any number key from [0] to [9]
Set new bookmark: [CTRL] + Any number key from [0] to [9]

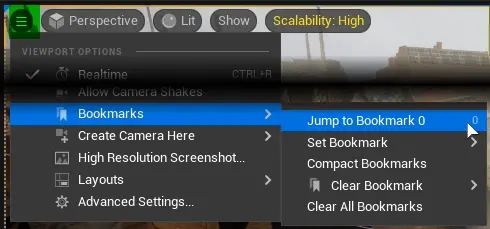

../../_images/076.webp

You can manage bookmarks in Viewport Options menu.#

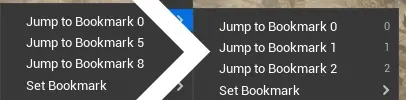

Compact Bookmarks simply removes empty slot gaps between saved bookmarks.

../../_images/095.webp

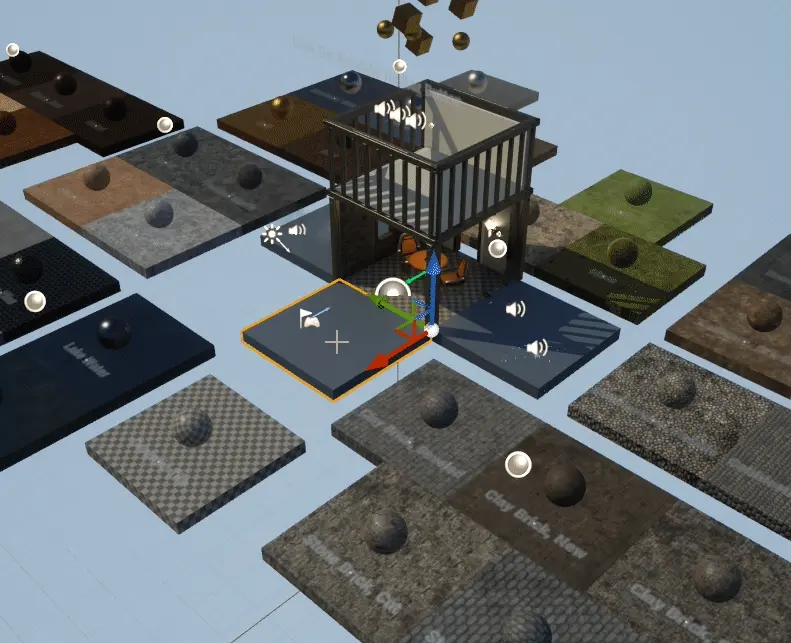

Focus camera#

Focus viewport camera on selected actor(s)#

Select at least one actor and press F

../../_images/0110.webp

Change Camera Speed#

../../_images/0210.webp

Use Change Camera Speed menu in editor viewport.

Camera Speed Scalar multiplies that value, allowing for more precise or faster camera movement.

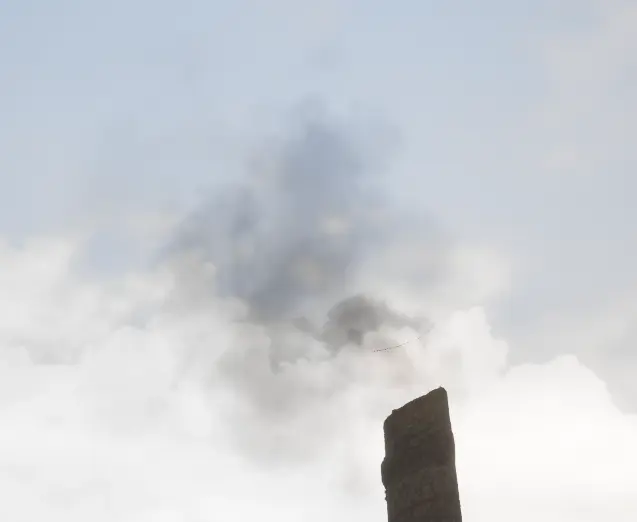

Realtime Toggle#

../../_images/363.webp
../../_images/343.webp ../../_images/353.webp

Disabling realtime pauses all animations, physics and particle systems.

While realtime is off, some windows will report it to the user and viewport toolbar will have extra toggle to turn it on.
Keyboard shortcut is [CTRL] + [R]

Note

While using Simulate or Play, viewport is only updated while viewport camera is moving.
