Actor Snapping#

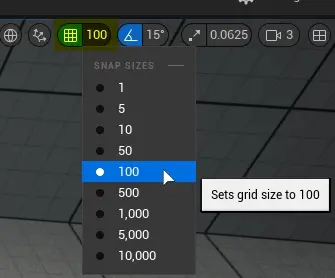

Grid Snapping#

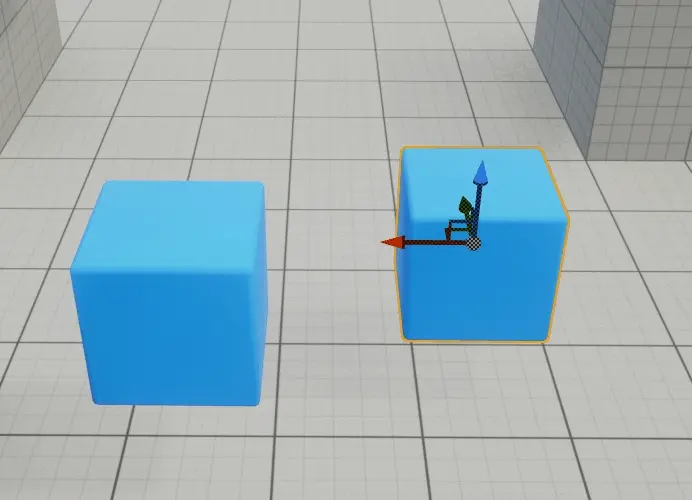

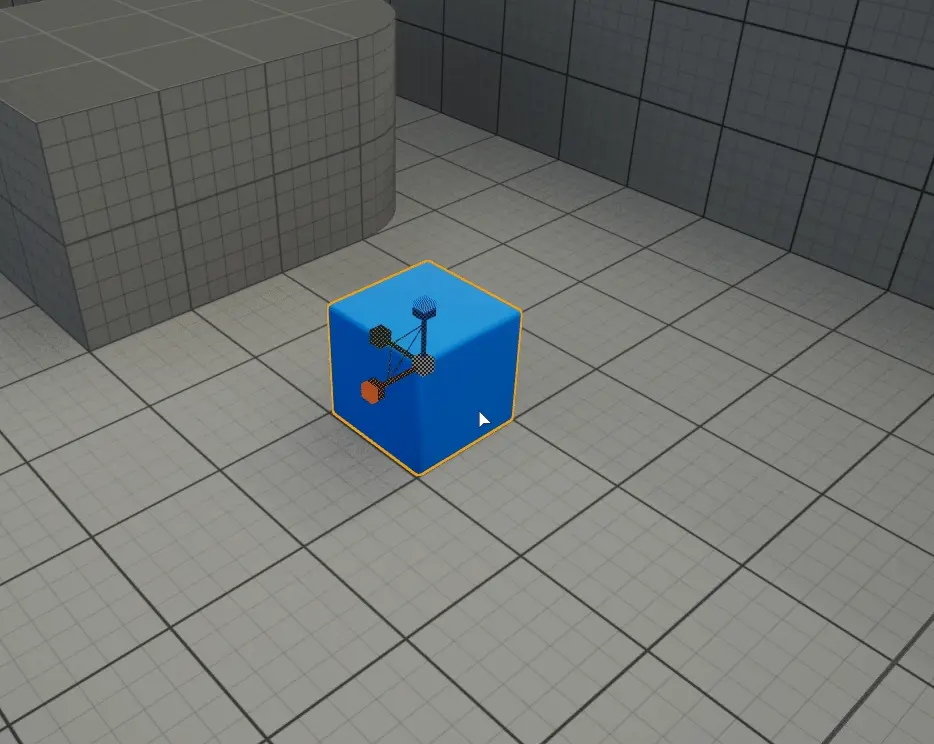

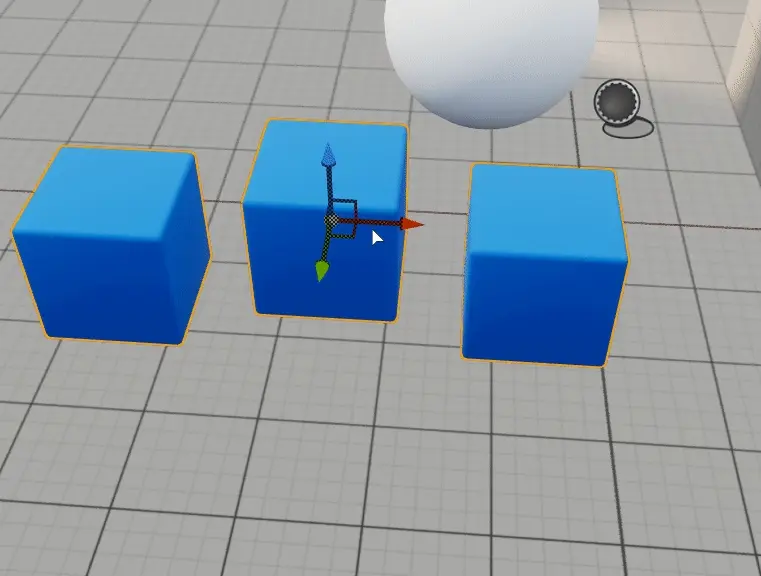

Grid snapping will force selected actor(s) to move in set increments when using gizmo.

To toggle this feature click on snapping_btn

Information

The unit of grid snapping in centimeters.

Rotation Snapping#

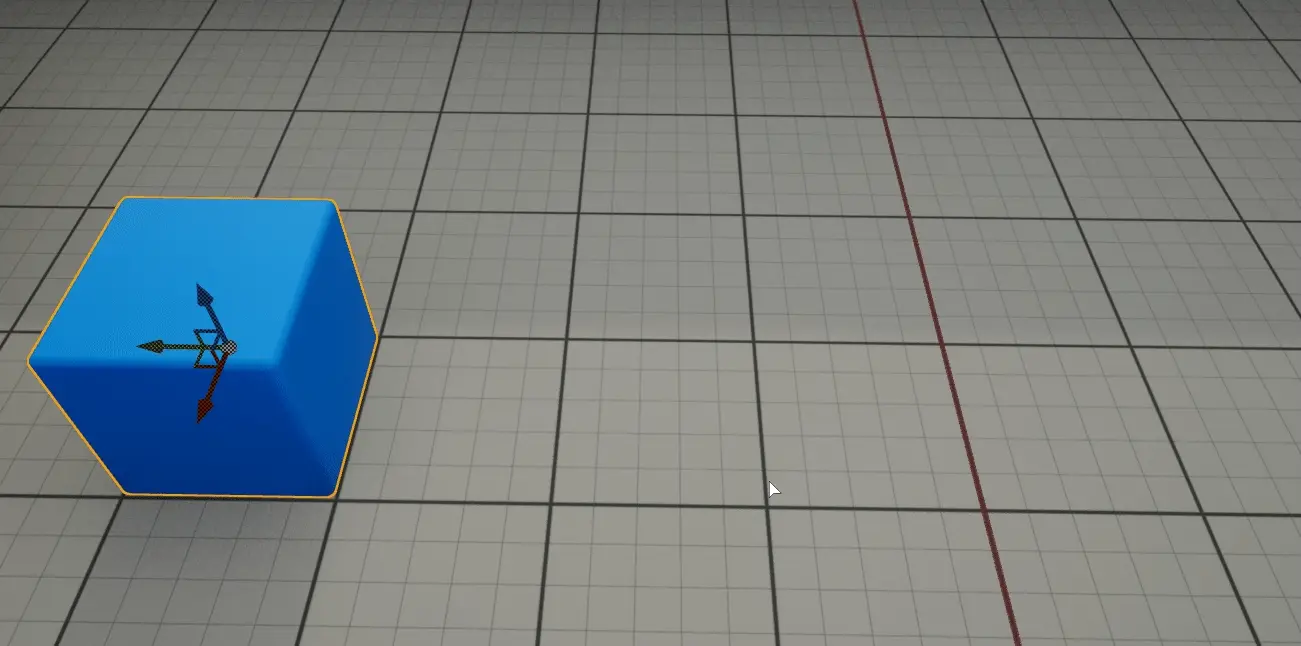

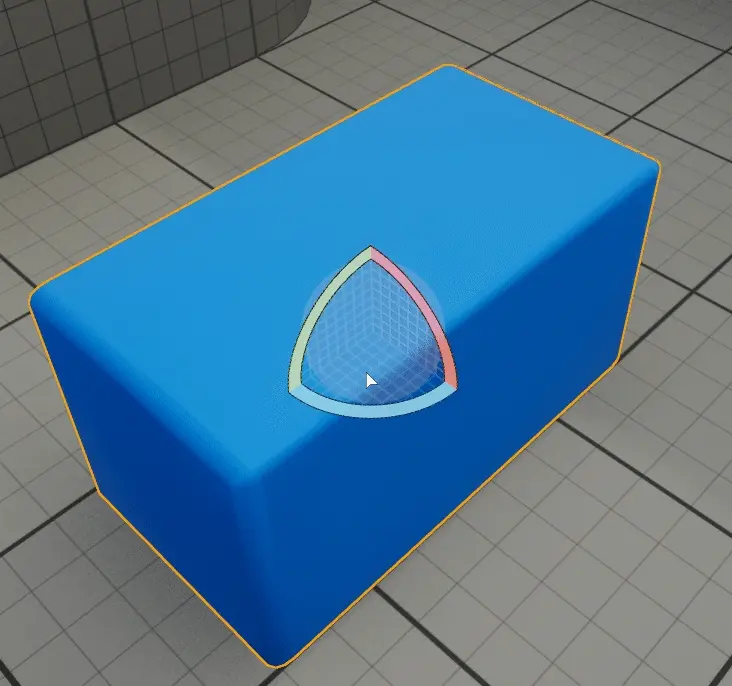

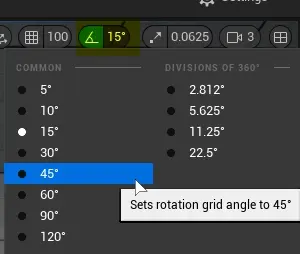

Rotation snapping will force the new rotation for selected actor(s) to be in specified increments

To toggle this feature click on angle_btn

Information

The unit of rotation snapping is degrees

Scale Snapping#

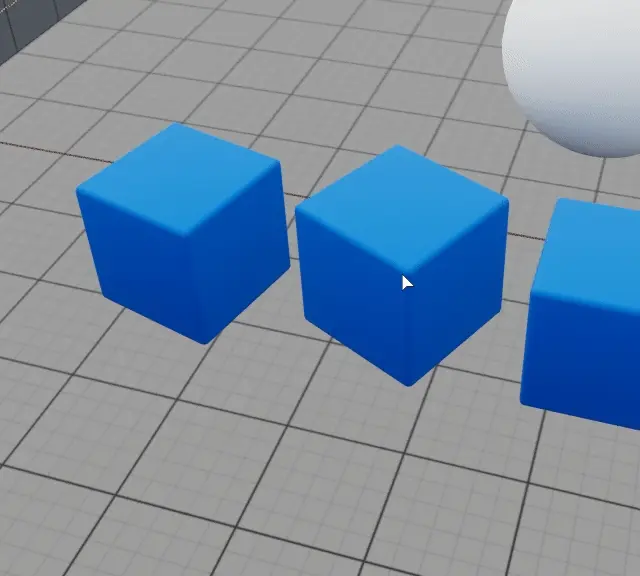

Scale snapping will force actors to scale in increments while using gizmo.

To toggle this feature click on scale_snap_btn

Information

The unit of scale snapping is multipiler

Preserve Non-Uniform Scale#

If actor has non-uniform scale (one or all scale axis have different values), scaling might not be working as expected. Toggling this on makes sure the actor is scaled in same way as the actor with uniform scale.

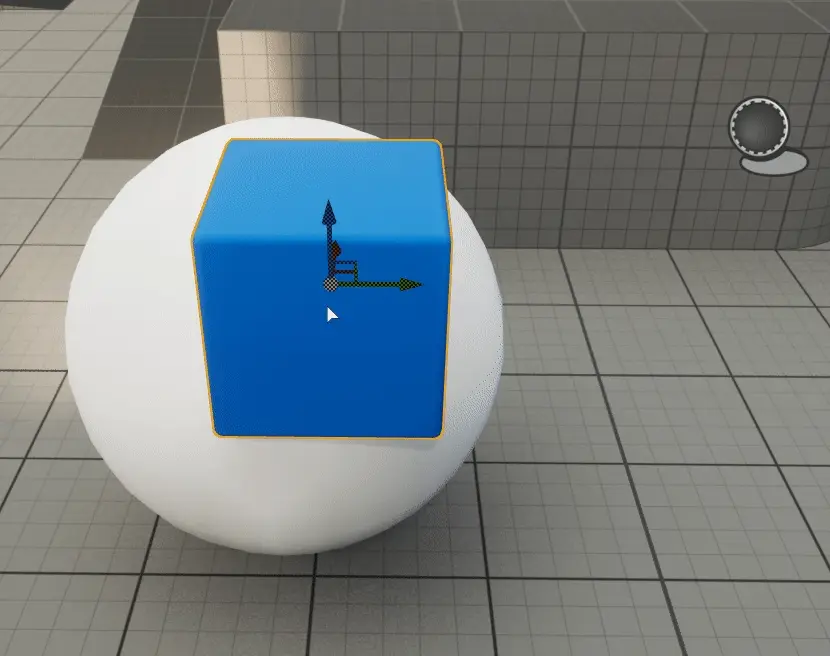

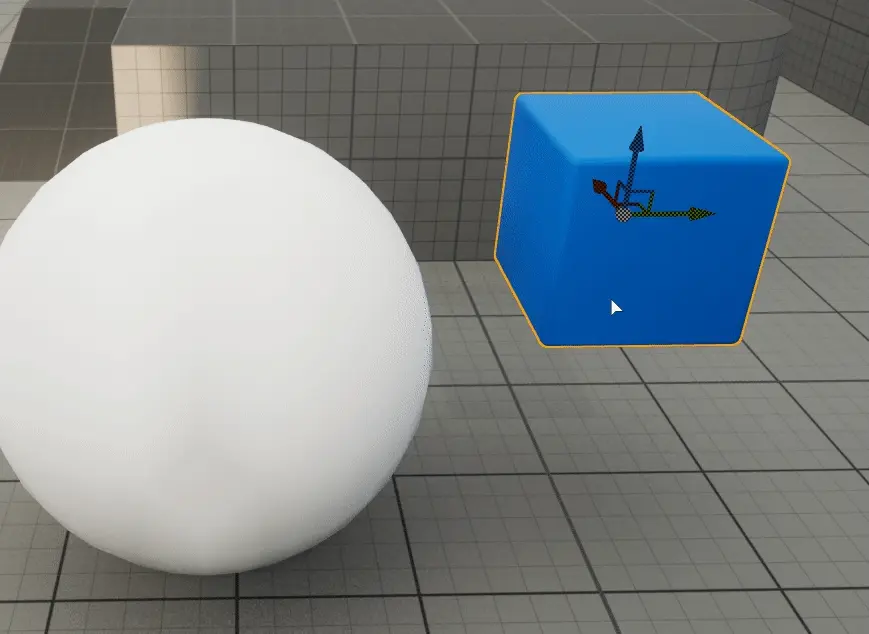

Surface Snapping#

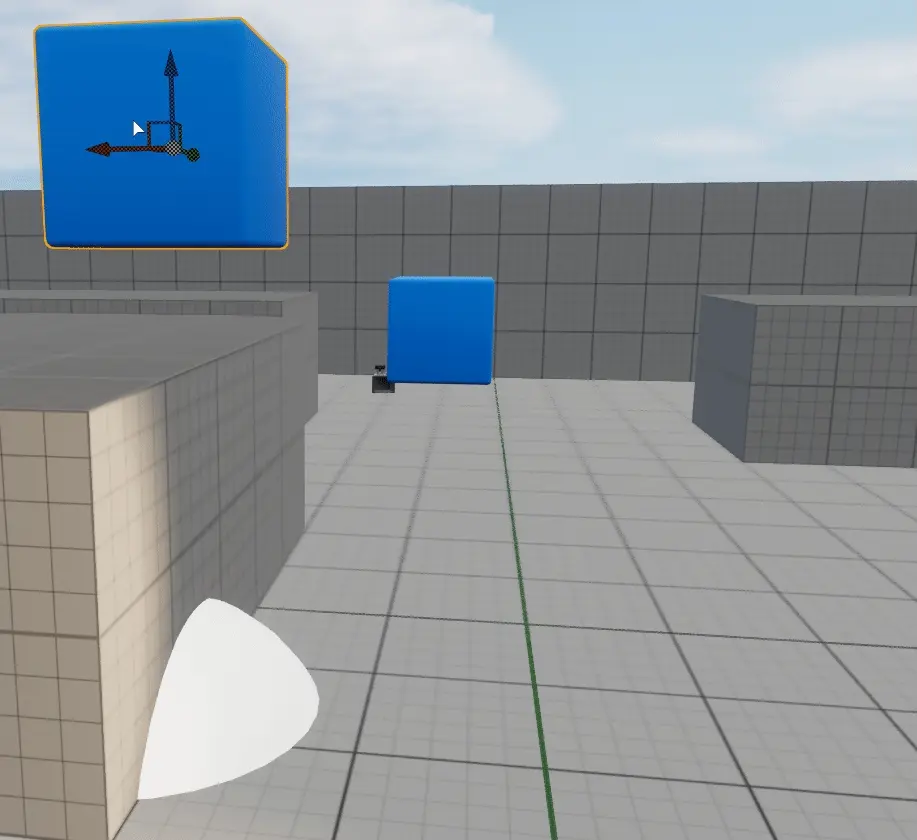

Simply places actor to position under the mouse cursor. (aligned to surface normal if Rotating to surface normal is enabled)

Rotate to surface normal#

Rotates actor to surface.

Surface offset#

Sets how far from target location actor will be placed.

Useful for actors with pivot point that is not placed at the bottom.

Information

Unit is centimeters

Actor Snapping (in Settings)#

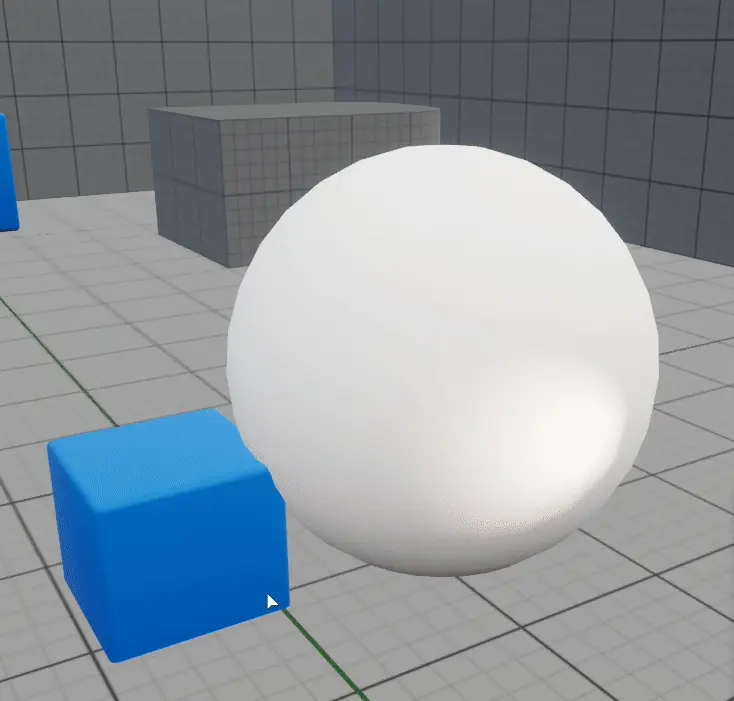

Actor snapping tries to snap selected actor to another actor.

Keyboard Shortcut: CTRL+SHIFT+K

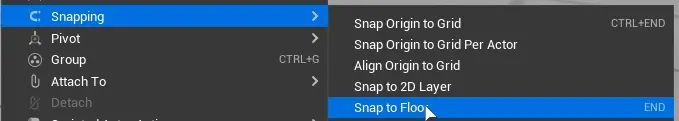

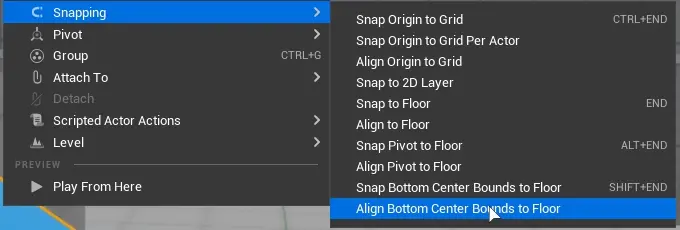

Actor Snapping Context Menu#

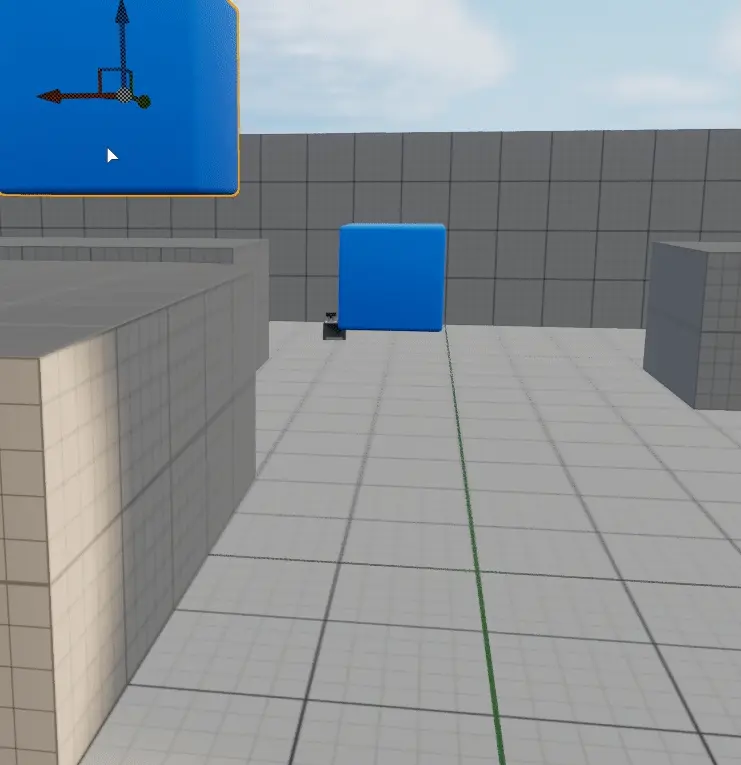

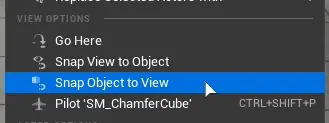

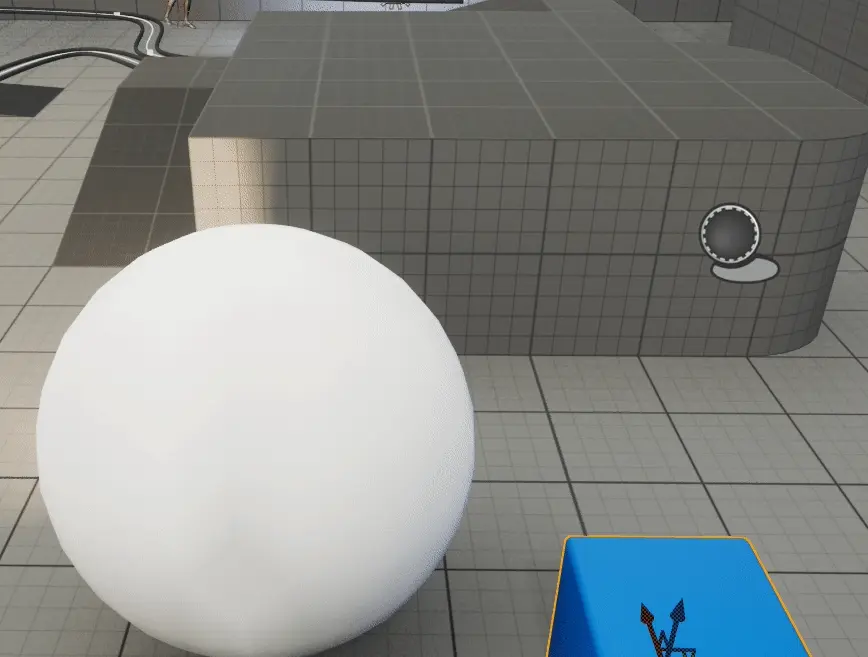

Snap actor to view#

Simply places actor at the viewport’s camera location.

Snap Origin To Grid#

Snaps the actor to nearest grid point on it’s pivot point.

If multiple actors are selected, pivot point of last selected actor will be used.

Keyboard shortcut CTRL+END

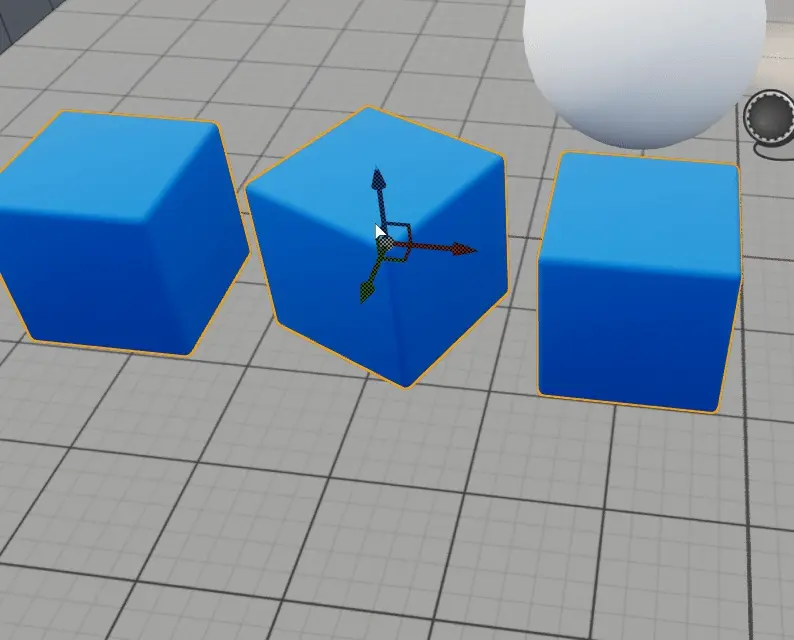

Snap Origin To Grid Per Actor#

This function works in the same way as Snap Origin To Grid, but it’s applied to each selected actor it’s own pivot point.

Align Origin To Grid#

This function works the same way as Snap Origin To Grid Per Actor, but also rotates actors to grid.

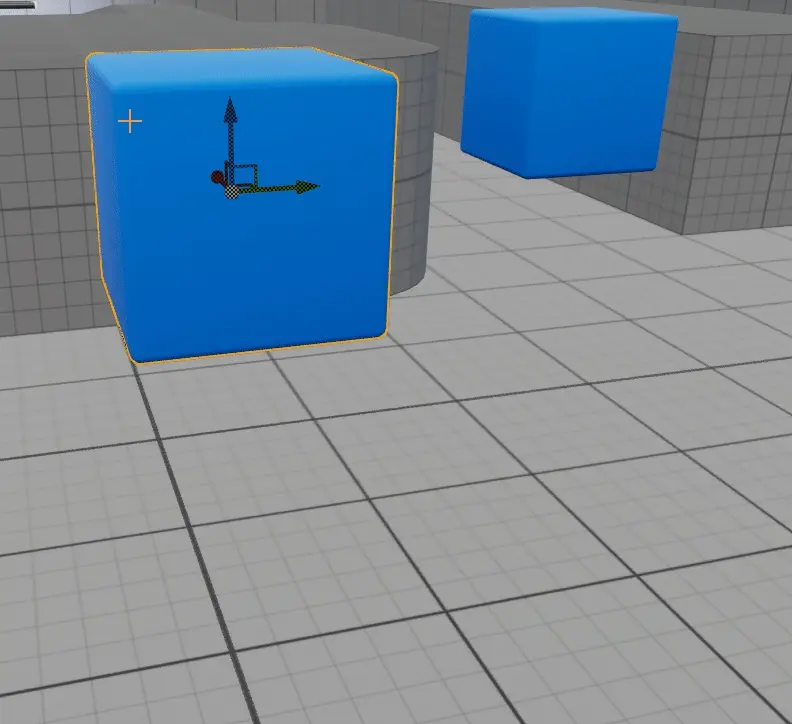

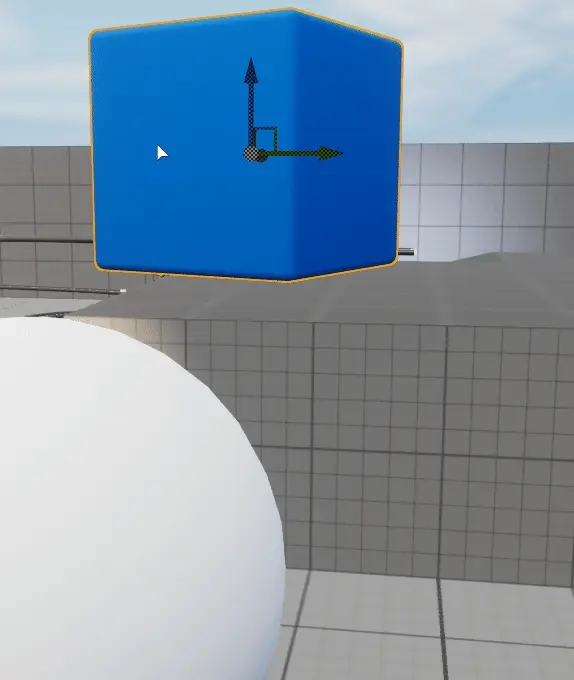

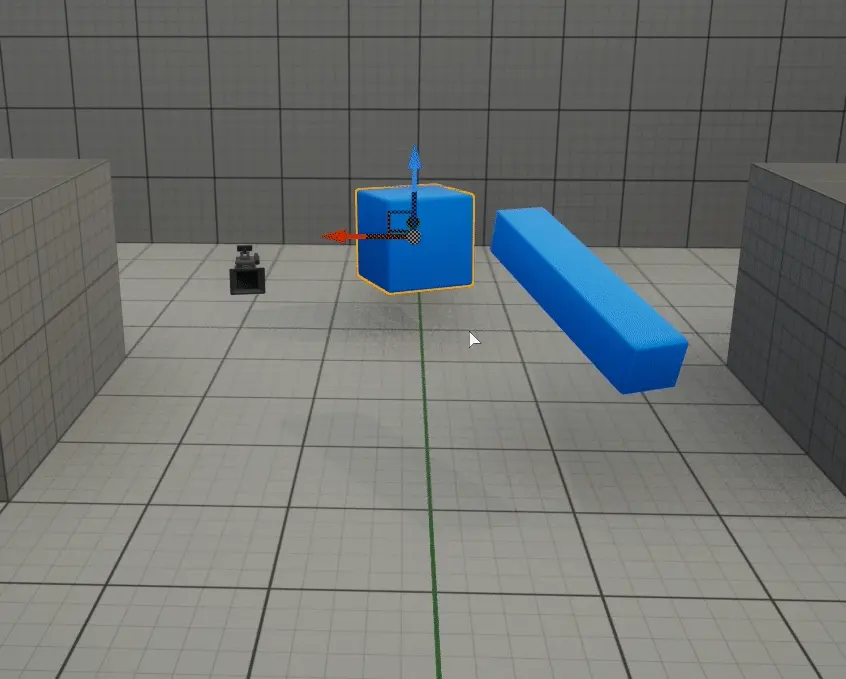

Snap to floor#

Snaps actor to the floor (actor with collision under the selected actor). Actor collision will be used.

Keyboard shortcut END

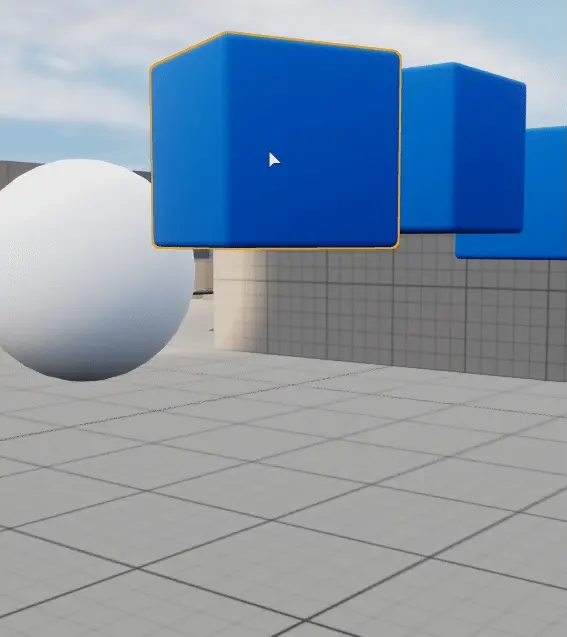

../../_images/54.webp — Snapping with flat floor#

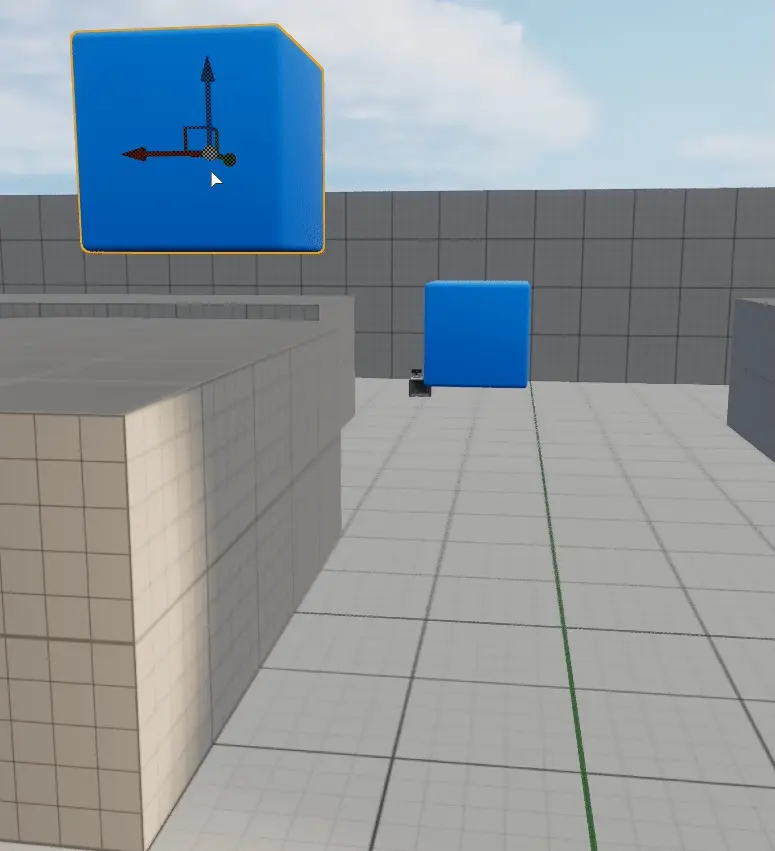

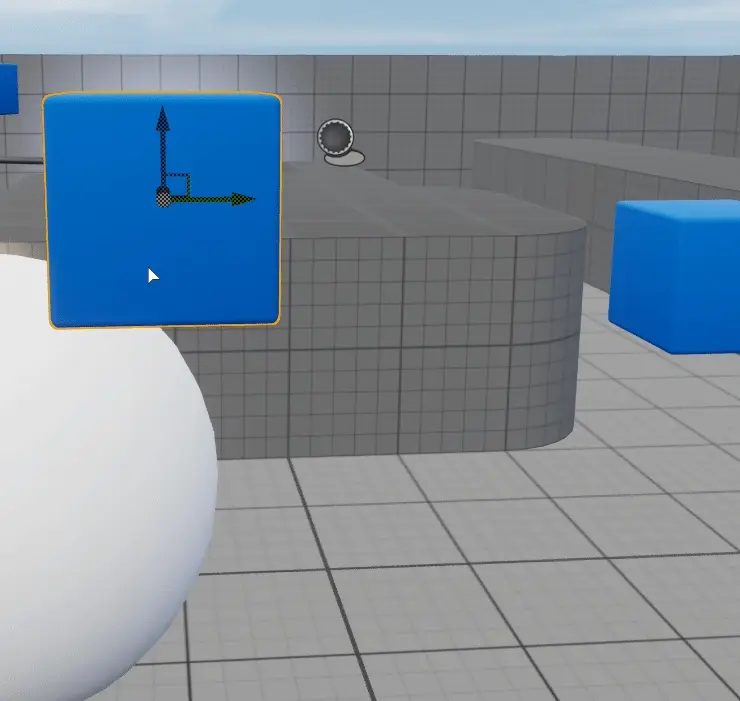

../../_images/63.webp — Snapping near floor edge#

Note

For static meshes collision will be used.

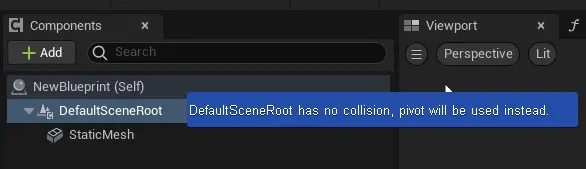

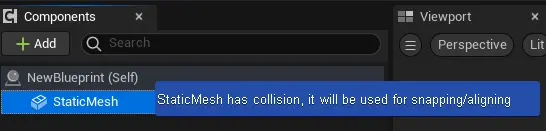

For blueprint actors - collision of first component in component hierarchy or pivot point if there is no collision.

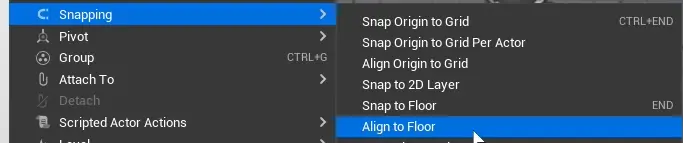

Align to floor#

Function works in same way as Snap to floor, but also tries to rotate actor to floor (actor) underneath.

Snap pivot to floor#

Function works in the same way as Snap to floor, but ignores collision and uses actor pivot point.

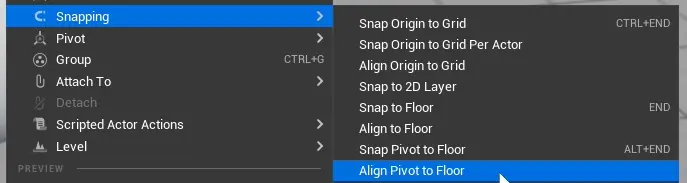

Align pivot to floor#

Function works in the same way as Align to floor, but ignores collision and uses actor pivot point.

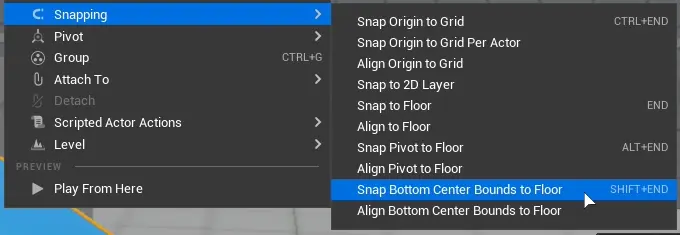

Snap bottom center bounds to floor#

Function works in the same way as Snap to floor, but uses the bottom center of actor’s collision for snapping instead.

Keyboard shortcut is SHIFT+END

Align bottom center bounds to floor#

Function works in the same way as Snap bottom center bounds to floor, but also aligns actor to the floor.

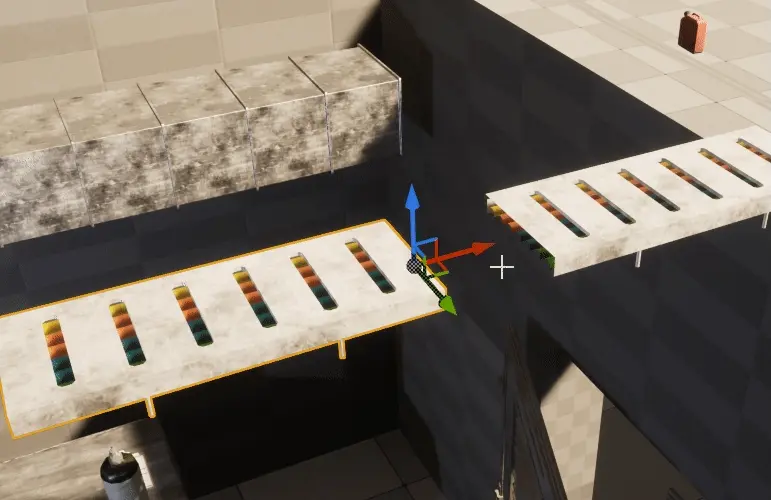

Snap to vertex#

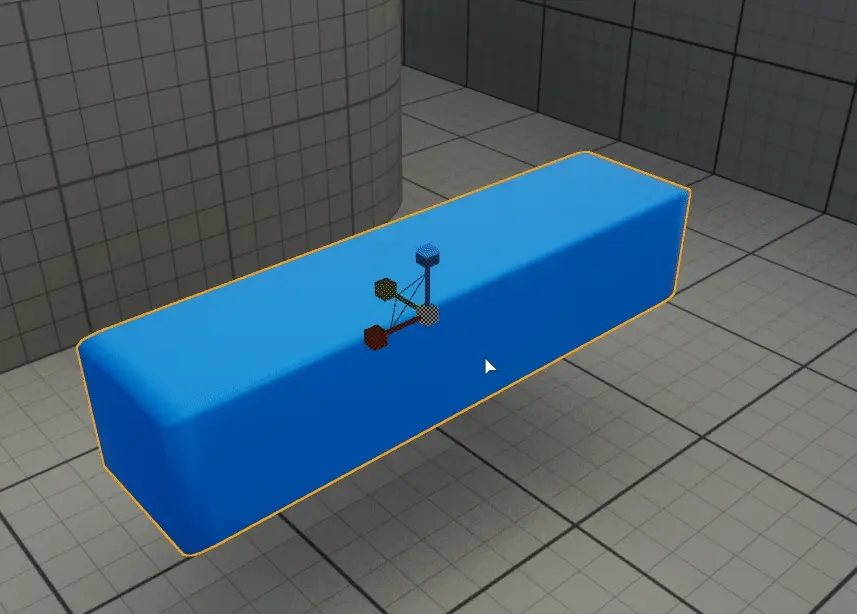

Hold V and move actor to enable snapping to nearest vertex. Combine with Surface Snapping to also align actor to vertex normal.

If pivot point is set on the edge, snap to vertex can be used to snap sections.

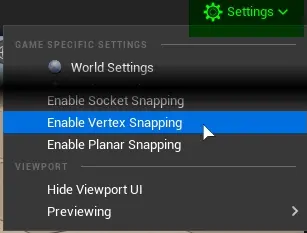

This option is also available in settings menu as a toggle:

Socket Snapping#

TODO

Socket Snapping

Planar Snapping#

TODO

Planar Snapping

2D Snapping#

2D Snapping options are available when Enable Snap Layers is enabled in Project Settings

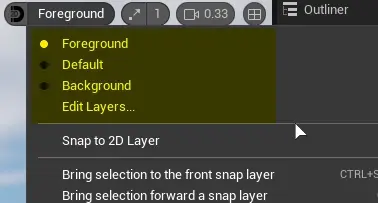

Snap Layers#

Snap layers are Y position presets that allow actors to be snapped to that value.

Using Edit layers… will open Project Settings 2D Tab in which new layers can be created and their names and Y values modified

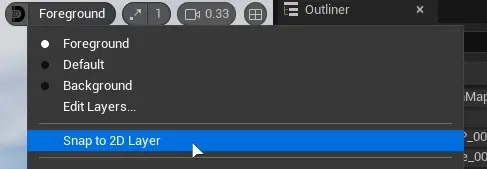

Snap to 2D Layer#

Snap to 2D Layer function will set the Y position value of selected object to currently active 2D snap layer .

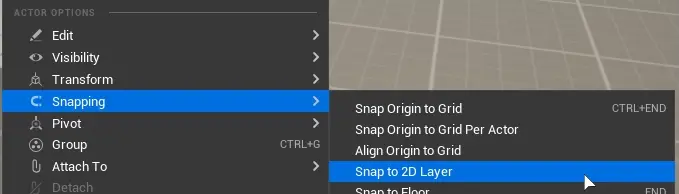

../../_images/75.webp — This function is also available in object context menu#

Info

The default value of foreground layer is Y = 100

Bring selection to front snap layer#

Sets the Y position of selected actors to value set in highest snap layer in hierarchy

Bring selection forward a snap layer#

Sets the Y position of selected actors to higher snap layer in hierarchy

Send selection backward a snap layer#

Sets the Y position of selected actors to lower snap layer in hierarchy

Send selection to the back snap layer#

Sets the Y position of selected actors to value set in lowest snap layer in hierarchy

Select next 2D Layer#

Selects the higher layer in snap layer hierarchy, which then can be used in Snap to 2D Layer

The selection will be shown on menu bar.

Select previous 2D Layer#

Selects the lower layer in snap layer hierarchy, which then can be used in Snap to 2D Layer

The selection will be shown on menu bar.
